Vacuum Motors

We supply a range of vacuum motors including single stage, two stage and three stage motors. Options include bypass, tangential, peripheral and thru-flow designs, with models available for commercial and domestic floorcare applications, central vacuum systems, carpet extractors, scrubber dryers, car wash systems and wet and dry vacuum cleaners.

Single stage vacuum motors are compact and suitable for lighter-duty applications where size and weight are important. Two stage motors offer a good balance of suction, airflow and efficiency for a wide range of commercial and industrial cleaning equipment. Three stage motors are designed for more demanding applications where higher suction performance and longer duty cycles may be required.

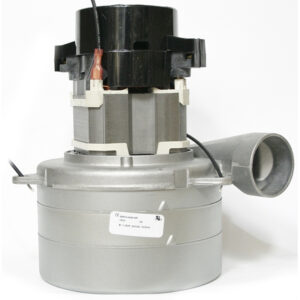

A bypass vacuum motor uses separate airflow for cooling the motor rather than relying only on the working air being collected by the vacuum. This design is commonly used in wet and dry vacuums, carpet extractors and other machines where moisture, dust or debris may pass through the vacuum system.

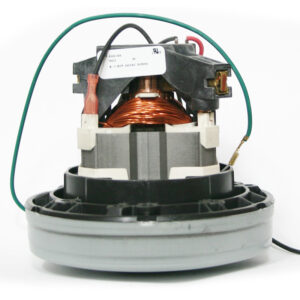

A thru-flow vacuum motor uses the working airflow passing through the motor for cooling. These motors are often compact and efficient, but they are generally more suited to dry vacuum applications where the collected air is properly filtered before it reaches the motor.

Tangential and peripheral discharge describe how air exits the vacuum motor. A tangential discharge motor directs exhaust air out through a side outlet, while a peripheral discharge motor exhausts air around the motor body. The correct choice depends on the machine design, housing, airflow path and the motor being replaced.

To identify the correct replacement motor, check the voltage, wattage, motor diameter, number of stages, discharge type, mounting style and any part numbers on the existing motor. It is also useful to compare the height, fan case size, terminal position and cooling type. If possible, send us photos of the motor label and the existing machine layout.

Many Electro Motor Group vacuum motors are designed with broad cross-compatibility to popular Ametek-Lamb, GS Electric and Domel motor models. Always check the technical specification and cross-reference details before ordering, as compatibility depends on the exact motor type, dimensions, voltage and machine design.

The correct voltage must match the machine or equipment the motor is being fitted into. Common options include 220-240V mains motors, 120V motors and lower voltage 24V or 36V motors for battery-powered equipment. Never fit a motor with the wrong voltage rating.

Yes, suitable vacuum motors are used in carpet extractors, scrubber dryers, wet and dry vacuums, central vacuum systems, car wash equipment and other floorcare machines. The correct motor depends on whether the application is wet or dry, the airflow path, voltage, suction requirement and machine housing.

Vacuum motors should only be fitted by a competent person with suitable electrical knowledge. The machine must be isolated from the power supply before any work is carried out. If you are unsure, use a qualified technician or service engineer to fit the replacement motor safely.

Yes. If you are not sure which vacuum motor you need, contact us with the make and model of the machine, any numbers from the existing motor label, the voltage, the number of stages and clear photos of the motor. We can help identify the most suitable replacement or cross-compatible option.
