Product Description
Overview

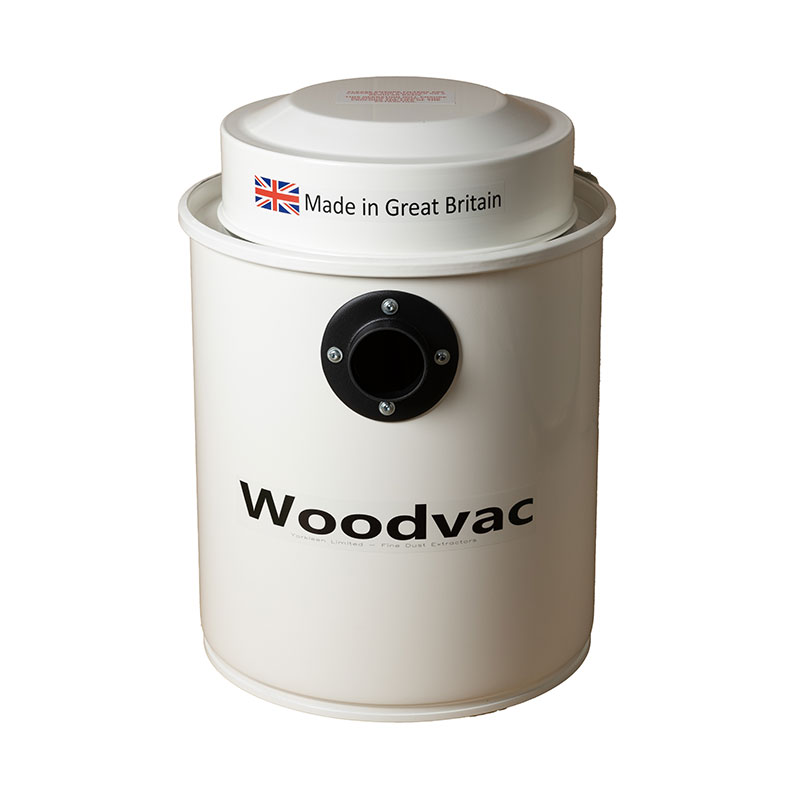

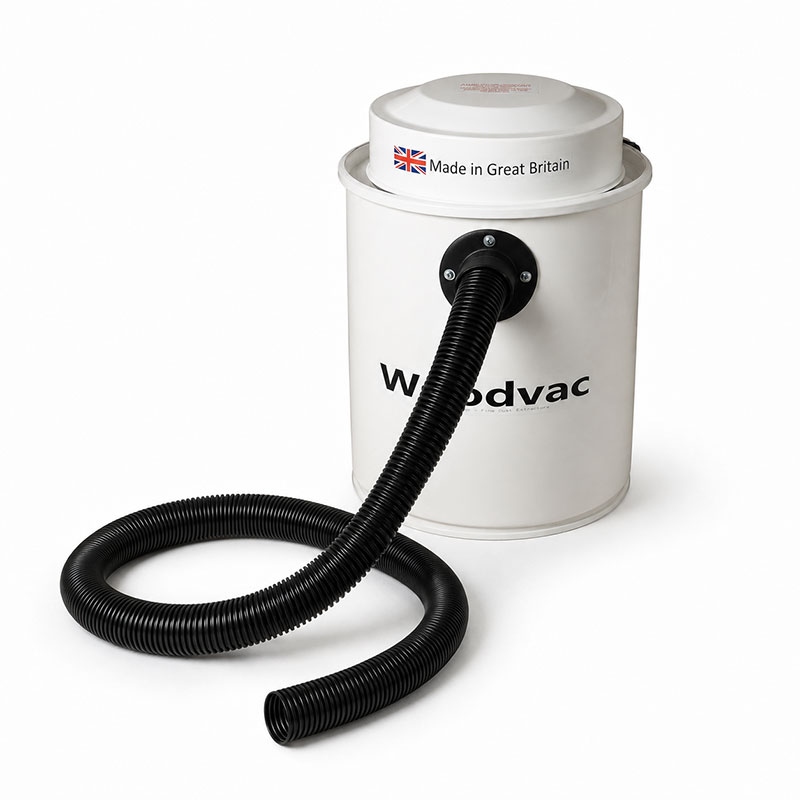

The WV100 features the well proven dual filtration system (0.5 micron filtration) consisting of a paper filter and a cloth filter secured over the motor housing, protecting your extractors motor so it lasts longer. This 35l extractor comes with a 51mm diameter crushproof hose which is an impressive 2.5m in length, ideal for use with stationary wood working machinery, as well as for power tools and sanders. At 510mm in height, the WV100 is a compact extractor, perfect to be stored under work benches. Equipped with a noise reducing acoustic hood, the WV100 measures 75dB(A) meaning it won’t deafen your workshop when in use.
The extractor comes with a pack of six replacement paper filters.
Features and Benefits
- Dual filtration to 0.5 micron using a paper and cloth filter
- 35l capacity is ideal for fine dust extraction and chip extraction in small workshops
- 51mm x 2.5m wire crushproof hose is versatile enough for fine dust and chip extraction
- Noise reducing acoustic hood limits noise to 75dB(A) keeping you workshop at a manageable noise level
- Made in the UK, this extractor will last many years with care
Specification
| Motor | Single phase 1x1200W vacuum motor |
| Speed | 12500rpm |
| Supply | 230V 50Hz on a 13A 3-pin BS approved moulded plug |
| Collection Capacity | 35ltr (approx) |
| Airflow Rate | 70 l/sec (+/-5%) |
| Filters | 2 stage, up to 0.5 micron |
| Suction | 2500mm WG (+/-5%) |
| Inlet Size (Internal Diameter) | 58mm |
| Size | 370mm diam x 510mm height |
| Approx. Weight | 10kg |
| Noise Level | 75dB(A) |
